Sprite

Manual / Base Types / 2D / Sprite

Sprite

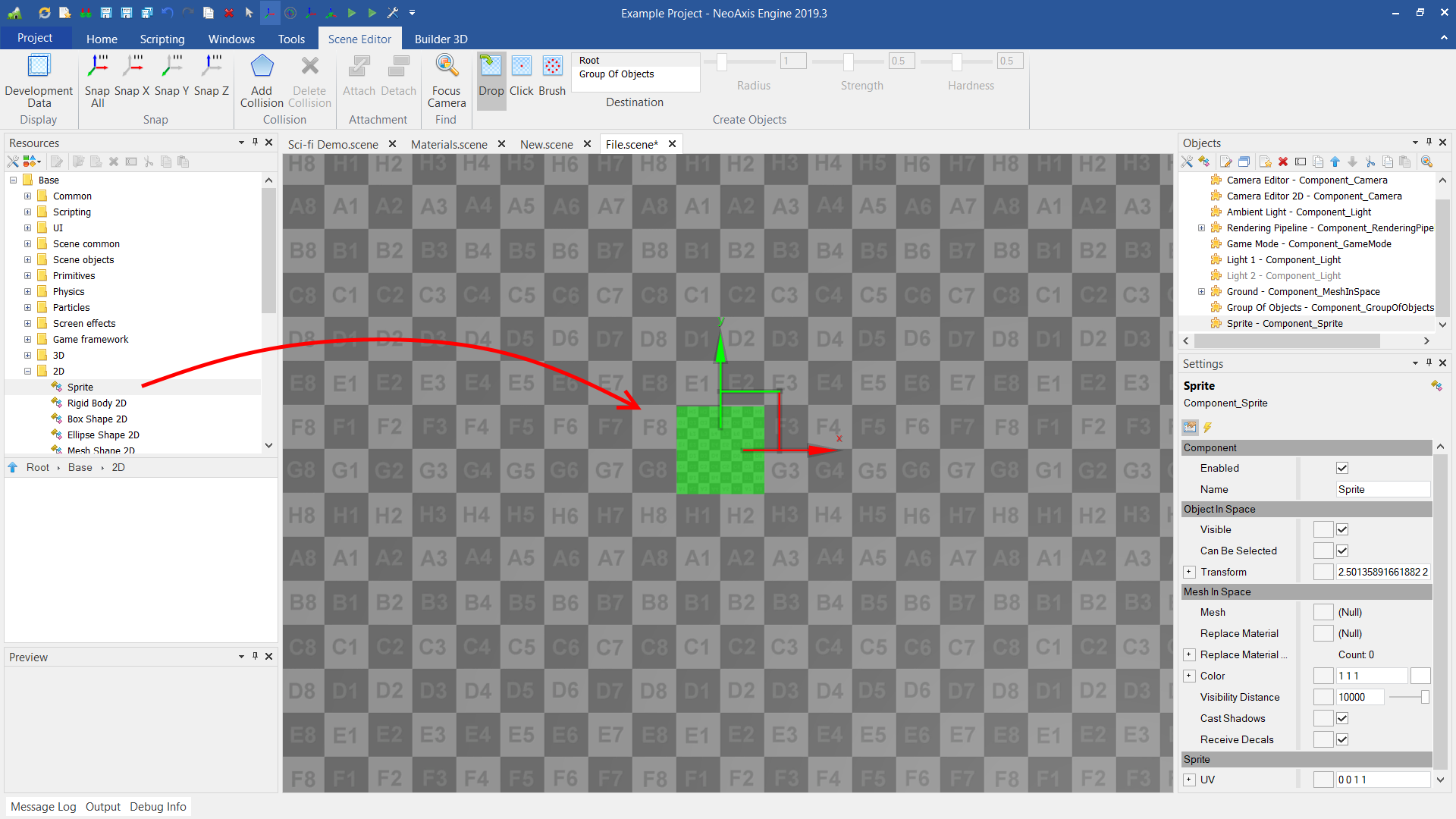

Sprite in the scene.

Contents

1 Overview
2 How to create
3 Properties
4 See also

Overview

The object displays a 2D rectangle with the assigned material.

Learn more about 2D game engine.

How to create

The sprite is created like other objects. The usual way to do this is to drag and drop it from the Resources Window.

Material is specified in the Replace Material property. Other features are supported, for example, support for using prepared meshes instead of a rectangle.

Properties

Name	Description
Mesh	The mesh used by the mesh object.
Replace Material	Replaces all geometries of the mesh by another material.
Replace Material Selectively	Replaces selected geometries of the mesh by another material.
Color	The base color and opacity multiplier.
Visibility Distance	Maximum visibility range of the object.
Cast Shadows	Whether to cast shadows on the other surfaces.
Receive Decals	Whether it is possible to apply decals on the surface.
Motion Blur Factor	The multiplier of the motion blur effect.
Special Effects	Specifies settings for special object effects, such as an outline effect.

Name	Description
UV	UV texture coordinates.
