Physical Objects Creation

The editor supports a rich set of tools for working with body physics.

Display physical objects

Physical objects are not displayed in the editor by default. In order to enable visualization, one needs to go to the Scene Editor tab in the Ribbon, and press Development Data, turn on the Physical Objects check box.

Screenshot999999489 2.png
Rigid Body

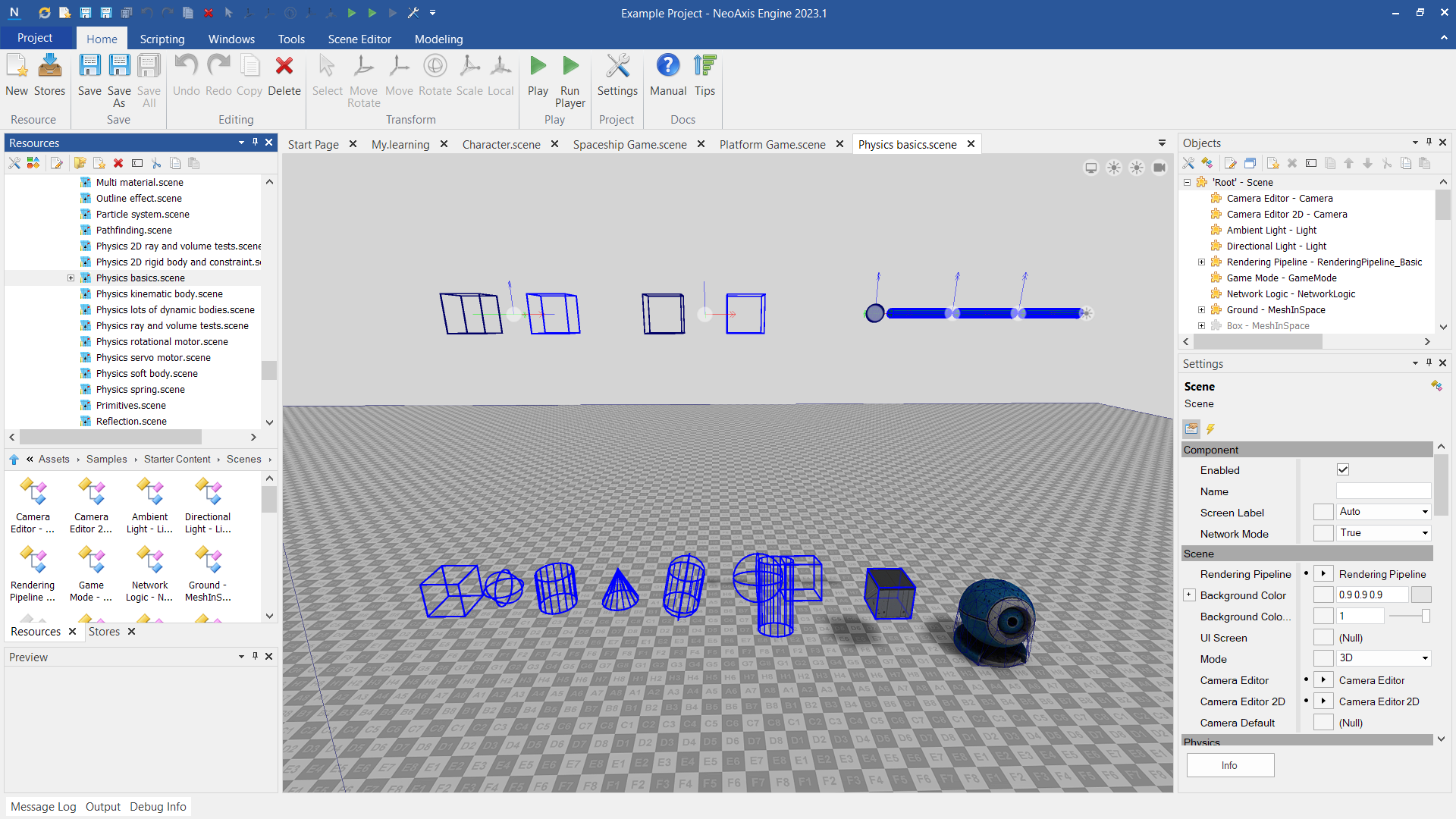

For a nice overview of rigid bodies and constraints one can take a look at 'Physics rigid body.scene' file, which can be found at 'Assets\Samples\Starter Content\Scenes'.

In order to run simulation, one should press the Play button in the Ribbon or in the Quick Access Toolbar.


One can create Rigid Body by picking required figure, and dropping in the scene.

Screenshot999999490 2.png

Also, body settings can be modified. For example, one can make body dynamical.

Screenshot999999491 2.png

In addition to simple bodies, one can create complex rigid bodies. That can be achieved via placing additional shapes to the body.

Screenshot999999492 2.png
Name Description
Motion Type The type of motion used.
Mass The mass of the rigid body.
Enable Gravity Whether the rigid body is affected by the gravity.
Linear Damping The linear reduction of velocity over time.
Angular Damping The angular reduction of velocity over time.
Material The physical material used by the rigid body.
Material Friction Mode The type of friction applied on the rigid body.
Material Friction The amount of friction applied on the rigid body.
Material Anisotropic Friction The amount of directional friction applied on the rigid body.
Material Spinning Friction The amount of friction applied when rigid body is spinning.
Material Rolling Friction The amount of friction applied when rigid body is rolling.
Material Restitution The ratio of the final relative velocity to initial relative velocity of the rigid body after collision.
CCD Whether the rigid body is using continious collision detection.
Ccd Swept Sphere Radius The swept sphere radius of continious collision detection.
Ccd Motion Threshold The motion threshold below which the continuous collision detection will not update. Increase the value to improve performance.
Center Of Mass Manual Whether the rigid body is using manual center of mass.
Center Of Mass Position The position of center of mass.
Inertia Tensor Factor The moment of inertia.
Linear Sleeping Threshold The linear velocity threshold below which the body will stop movement.
Angular Sleeping Threshold The angular velocity threshold below which the body will stop rotating.
Collision Group The collision filtering group.
Collision Mask The collision filtering mask.
Linear Velocity The initial linear velocity of the body.
Angular Velocity The initial angular velocity of the body.
Contacts Collect Whether to collect collision contacts data. Use
property to get data.
Contacts Display Whether to display collected collision contacts data.
Add Collision

Another way to create rigid body is to press Add Collision button in Ribbon or via context menu. This works best when one needs to add physical body to the existing object in the scene.

Screenshot999999493 2.png

One can see that body now has nested object Collision Body, which could be tuned.

Screenshot999999495 2.png

To create Constraint one needs to select two bodies, and select Add Constraint in the context menu.


Select constraint type in the appeared window.


After creation, constraint can be moved to the desired place, its settings can be adjusted.

Name Description
Body A The first physical body used.
Body B The second physical body used.
Collisions Between Linked Bodies Whether the collision detection is enabled between the linked physical bodies.
Breaking Impulse Threshold The value indicates the maximum value of the applied impulse to the body, which may be before it is breaks.
Override Number Solver Iterations Overrides solver processes number on every physics frame.
Auto Activate Bodies Whether to activate sleeping bodies when any motor of the constraint is enabled.
Linear Axis X Linear X-axis constraint mode.
Linear Axis Y Linear Y-axis constraint mode.
Linear Axis Z Linear Z-axis constraint mode.
Angular Axis X Angular X-axis constraint mode.
Angular Axis Y Angular Y-axis constraint mode.
Angular Axis Z Angular Z-axis constraint mode.
Soft Body

Soft Body is a body that can be deformed.

For an overview of soft bodies, one can take a look at "Physics soft body.scene" file, which can be found at Assets\Samples\Starter Content\Scenes.


To create a soft body, one needs to create Soft Body object.

Screenshot999999501 2.png

Then, one should set Mesh property.

Screenshot999999502 2.png

Result in the player:

Physical Material

Physical Material used to adjust physical body parameters during collision with other bodies. Generally, these parameters can be set in the physical body parameters. These parameters can be wrapped in a separate object, and assigned to several bodies. Material can be assigned via Material setting. At the moment, only rigid bodies are supported; soft bodies are not supported.


Sensor used to tune up event firing when bodies get into specific area.

For a nice overview of sensors one can take a look at 'Sensors.scene' file, which can be found at 'Assets\Samples\Starter Content\Scenes'.

  • No collision between soft bodies and multi shape rigid mesh shapes or when a mesh shape TransformRelativeToParent is not a default value.
