NeoAxis AEC

NeoAxis Group
Files
This is a Content.
License: Paid Per Seat
Annual subscription: $249
Published: 27 October 2026
Updated: 27 October 2026
Content build size: 33.47 MB
Download

NeoAxis AEC brings industrial CAD and architectural BIM data directly into real-time 3D. Import complex IFC and STEP models seamlessly inside the NeoAxis Editor and at runtime in your standalone applications.

Features:

  • Runtime & Editor Import: Load engineering models on the fly in compiled builds without pre-baking.
  • Full BIM Metadata: Extract and query property sets (Psets), layers, materials, and custom attributes via C#.
  • Hierarchy Preservation: Retain full spatial trees and CAD assembly structures for individual component control.
  • In-Scene Editing & Detachment: Modify imported components directly in the scene, detach sub-assemblies and individual parts, and rearrange object structures on the fly.

Supported formats:

  • IFC (.ifc, .ifcxml, .ifczip, .xbim)
  • STEP (.step, .stp)

Package includes:

  • Full source code.
  • Sample projects & demo models.

Need additional features, custom improvements, or technical support? Contact us.

Screenshots

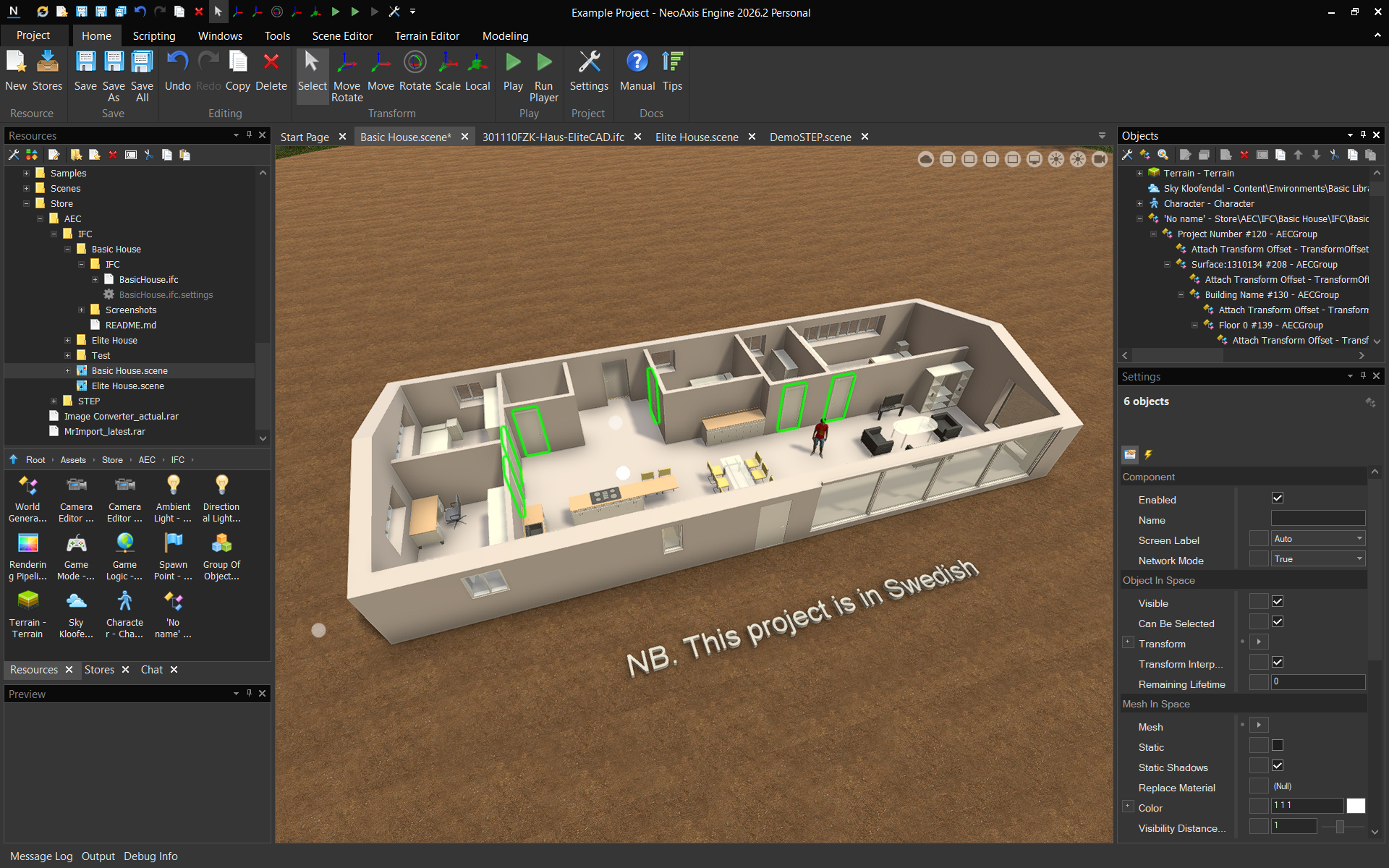

Screenshot 1

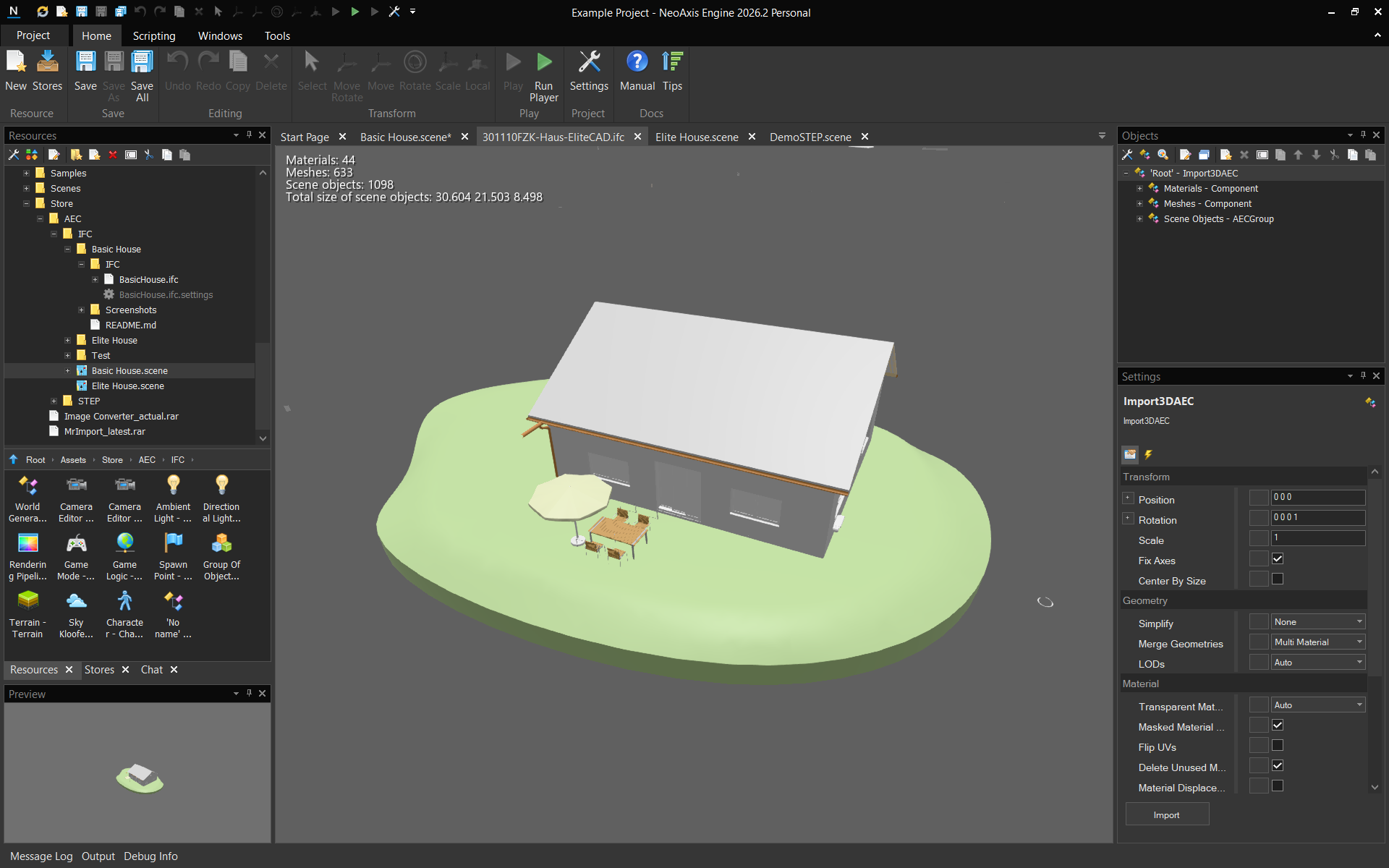

Screenshot 2

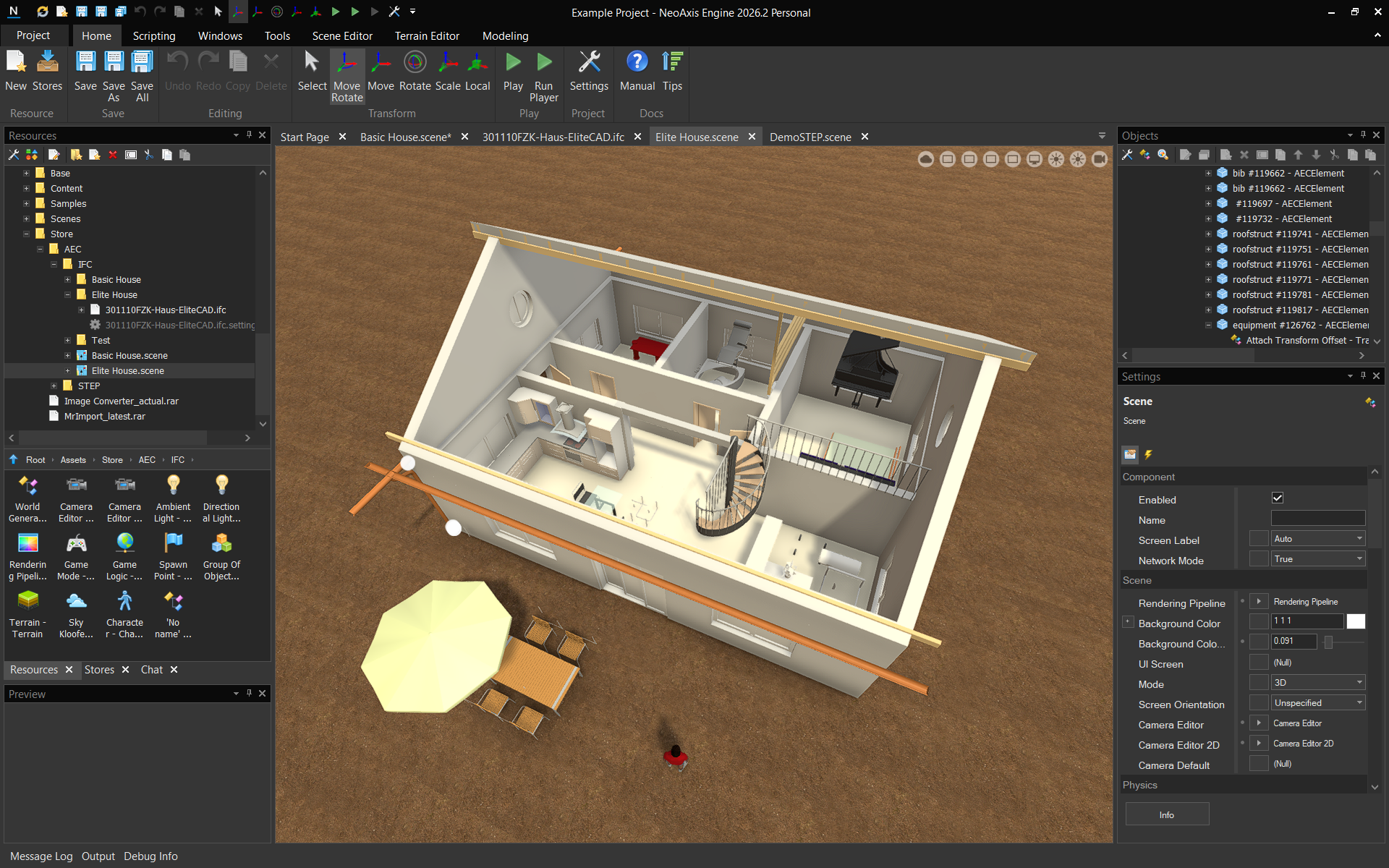

Screenshot 3

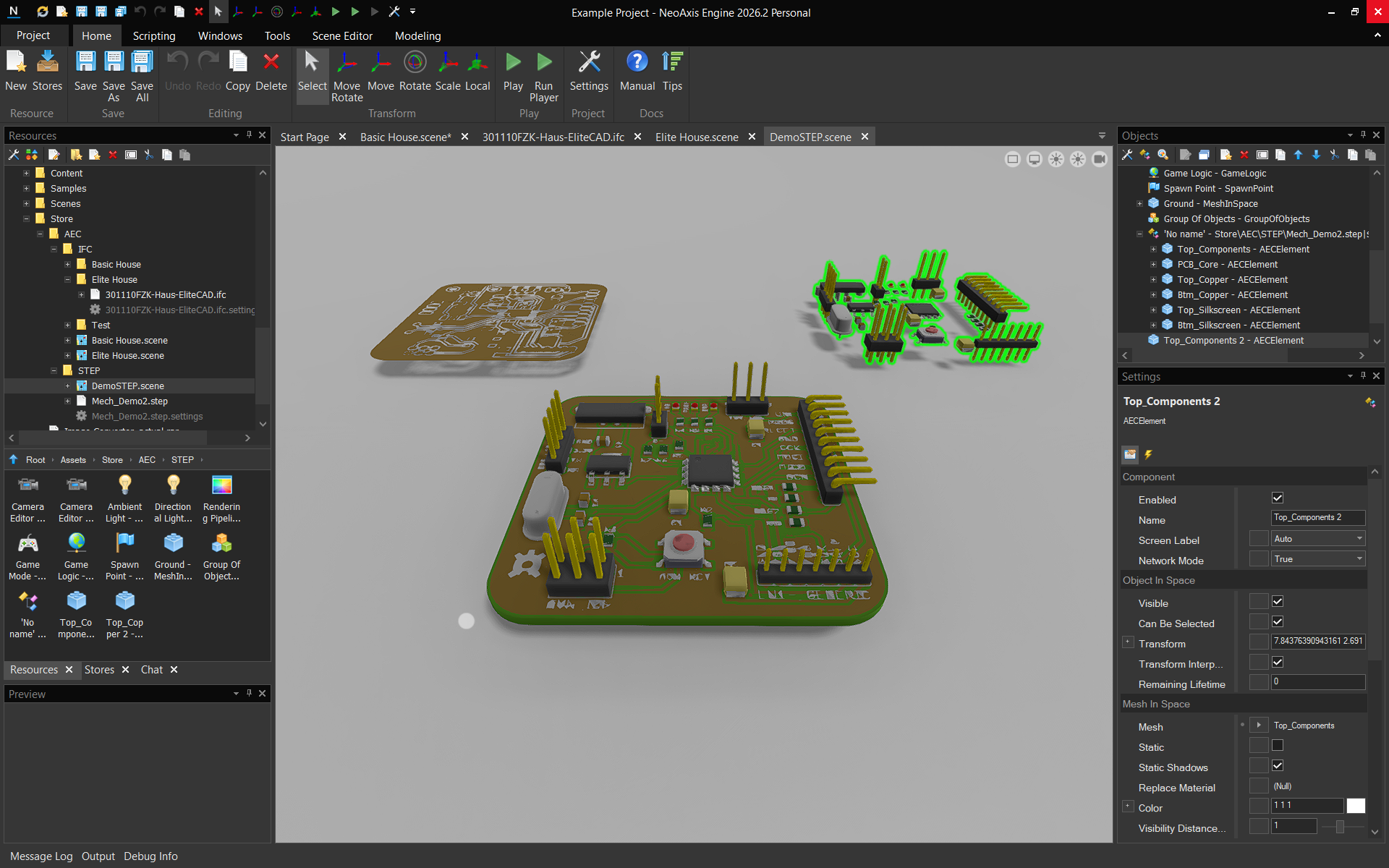

Screenshot 4

Files

Assets/Store/AEC/IFC/Basic House/IFC/BasicHouse.ifc
Assets/Store/AEC/IFC/Basic House/IFC/BasicHouse.ifc.settings
Assets/Store/AEC/IFC/Basic House/README.md
Assets/Store/AEC/IFC/Basic House/Screenshots/Screenshot_1.png
Assets/Store/AEC/IFC/Basic House/Screenshots/Screenshot_2.png
Assets/Store/AEC/IFC/Basic House/Screenshots/Screenshot_3.png
Assets/Store/AEC/IFC/Basic House.scene
Assets/Store/AEC/IFC/Elite House/301110FZK-Haus-EliteCAD.ifc
Assets/Store/AEC/IFC/Elite House/301110FZK-Haus-EliteCAD.ifc.settings
Assets/Store/AEC/IFC/Elite House.scene
Assets/Store/AEC/STEP/DemoSTEP.scene
Assets/Store/AEC/STEP/Mech_Demo2.step
Assets/Store/AEC/STEP/Mech_Demo2.step.settings
Sources/NeoAxis.Addon.AEC/NeoAxis.Addon.AEC/AECAssemblyRegistration.cs
Sources/NeoAxis.Addon.AEC/NeoAxis.Addon.AEC/AECElement.cs
Sources/NeoAxis.Addon.AEC/NeoAxis.Addon.AEC/AECGroup.cs
Sources/NeoAxis.Addon.AEC/NeoAxis.Addon.AEC/Import3DAEC.cs
Sources/NeoAxis.Addon.AEC/NeoAxis.Addon.AEC/Import3DAECResource.cs
Sources/NeoAxis.Addon.AEC/NeoAxis.Addon.AEC/ImportIFC.cs
Sources/NeoAxis.Addon.AEC/NeoAxis.Addon.AEC/ImportSTEP.cs
Sources/NeoAxis.Addon.AEC/NeoAxis.Addon.AEC/NeoAxis.Addon.AEC.csproj
Sources/NeoAxis.Addon.AEC/NeoAxis.Addon.AEC/Properties/AssemblyInfo.cs
Sources/NeoAxis.Addon.AEC/NeoAxis.Addon.AEC.slnx
